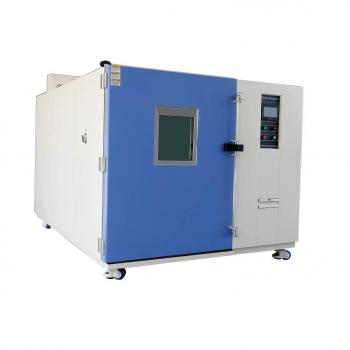

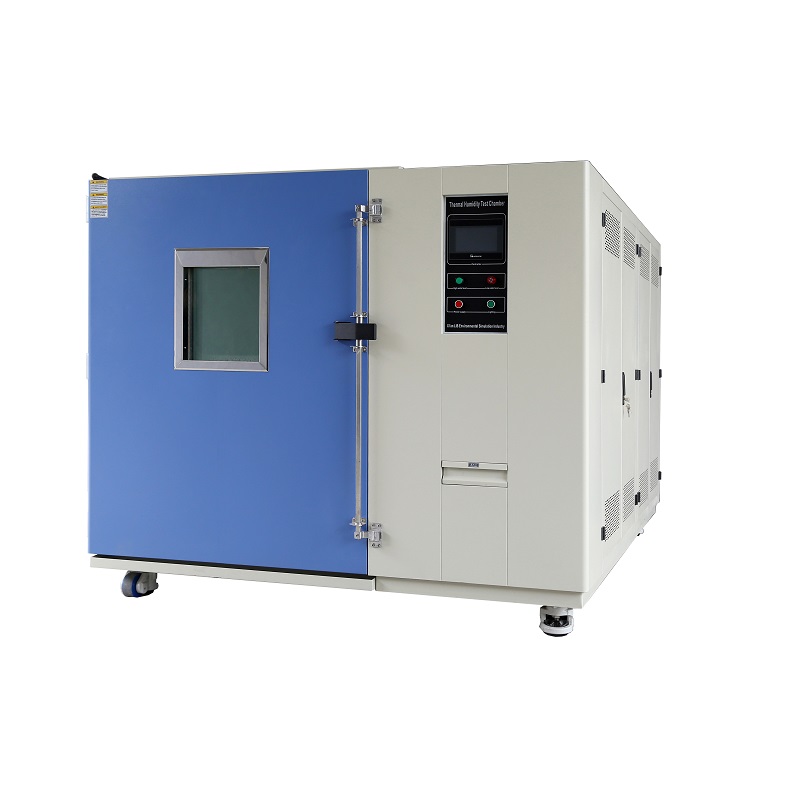

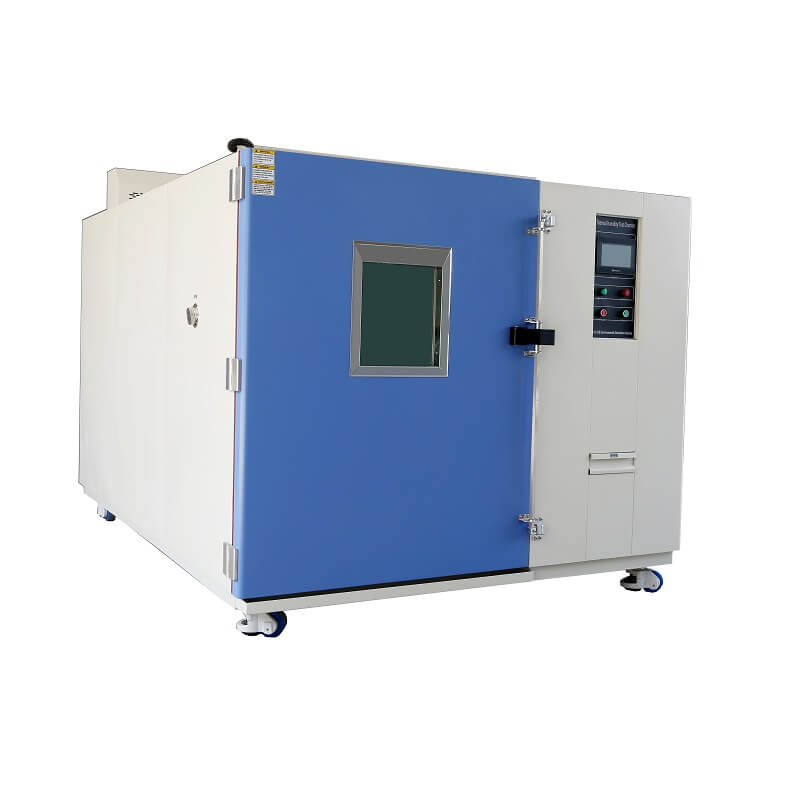

Environmental Test chambers for PV Solar Panels
Detail :

Environmental test chamber is for PV modules (solar panels) thermal cycling, humidity freeze cycle, and damp heat RH testing, to test whether PV modules can withstand high temperature with humidity and low temperature, to test its fatigue and thermal failure after temperature repeated changes, to confirm its thermal stress PV modules generated under high humidity circumstance and capability of long-term resistance to moisture penetration. This test chamber is widely used in solar panels testing.

Different models let you choose size, configuration and performance to suit many types of solar panels for IEC, UL test methods.



  • Test chambers meet IEC 61215, IEC61646,UL-1703 and similar test methods
  • Thermal cycle test – 50 and 200 cycles from -40℃ to +85℃
  • Humidity freeze test – 10 cycles from +85℃ & 85%RH to -40℃
  • Damp heat test – 1000h at 85℃ & 85%RH
  • Different models to suit various size of PV Solar Panels

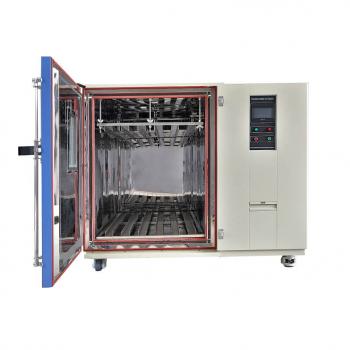

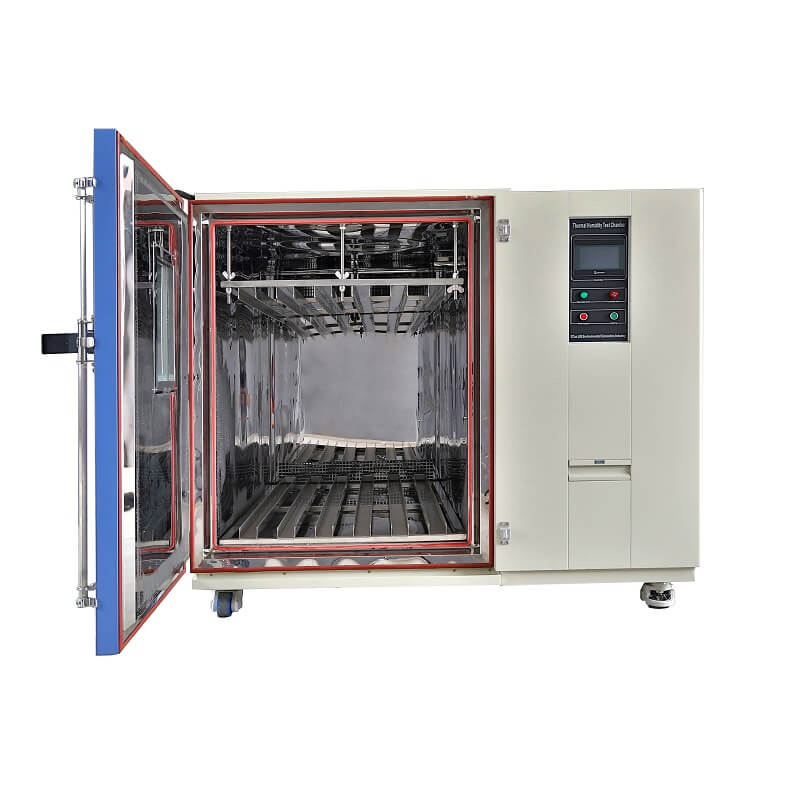

  • Supporting racks for fix PV panels
  • Adjusting heat & cooling change rate
  • Reliable performance
  • Temperature control and display unit
  • Humidity control and display unit
  • Programmable color LCD touch screen controller
  • Multi-language interface
  • USB and Ethernet
  • Mechanical compression refrigeration system
  • Casters, racks, and cable port are standard
  • Build-in water tank
  • Safety protection system
  • CE mark, ISO17025 calibration


Product Models

Internal size (mm)
External size(mm)
Temperature Range
Humidity Range
PV-04 1300* 700 * 1350 1900 * 1100 * 1750 -40°C ~ +100°C 20%~98%RH, controllable

Standard & Custom


Product Accessories

Number Name Picture Description
No.1 Refrigerant

  Refrigerant R404A (5KG/tank)
  Brand: DuPont
No.2 Refrigerant

  Refrigerant R23 (10KG/tank)
  Brand: DuPont
No.3 Adding Refrigerant

  Adding Refrigerant Kits-Tool
  Material: PU Included pressure
  gauge and connection hose
No.4 Temperature heater

  Temperature heater Description:
  Nichrome heater Power:2000W,
  and more
No.5 Humidity heater

  Humidity heater Description:
  Nichrome heater Power:1000W
No.6 Capacitive temperature/ humidity sensor

  Brand:VAISALA Model:
  HMA6070 Temperature
  Accuracy:0.01℃ Humidity
  Accuracy: 1.3% Solution ratio:

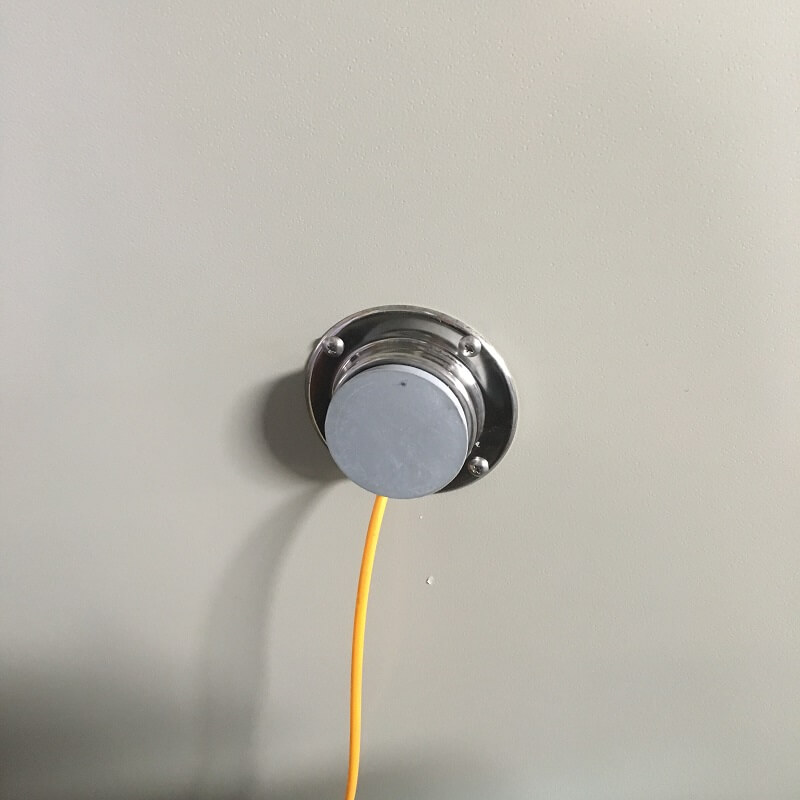

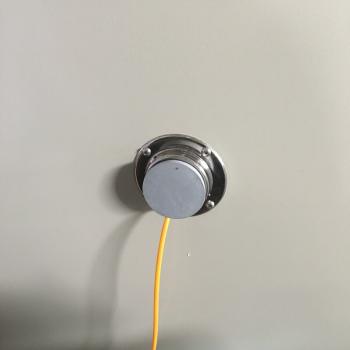

No.7 Silicone screw plug for cable hole

  Silicone screw plug for cable hole
